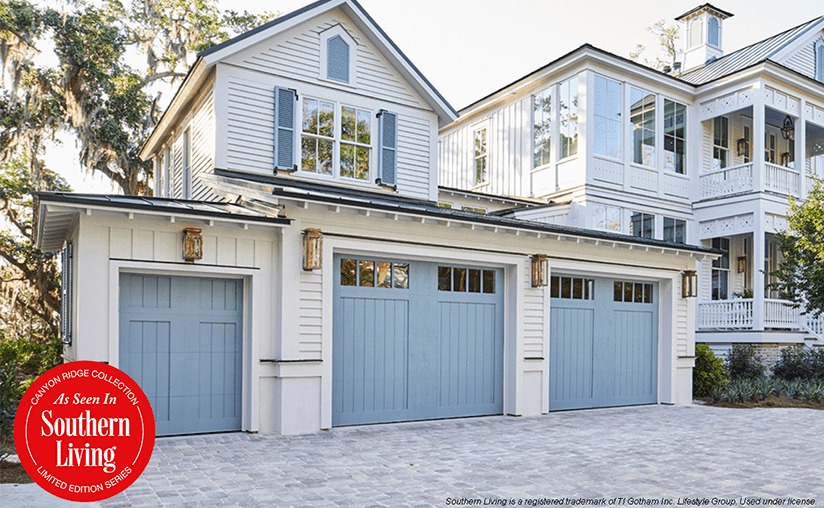

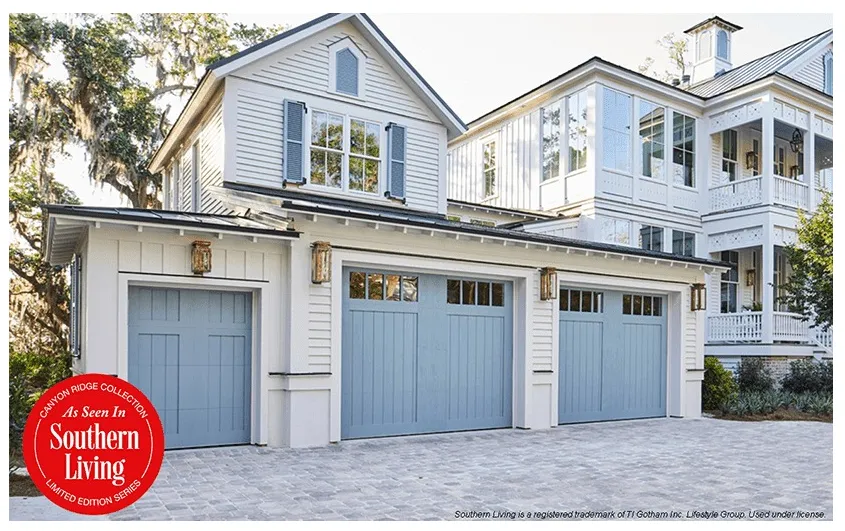

Clopay’s Canyon Ridge® Carriage House (5-Layer) garage door. Enjoy the authentic look of swing-out coach house doors paired with the modern-day functionality of upward operation. Not only beautiful, these doors provide quiet operation and energy efficiency for years to come.
Clopay Canyon Ridge® Carriage House (5-Layer) garage doors take inspiration from the coach house designs of yesteryear and bring them to life with today’s technology. These doors are constructed with steel for strength and durability, and molded composite materials for beauty and realism. These doors feature:

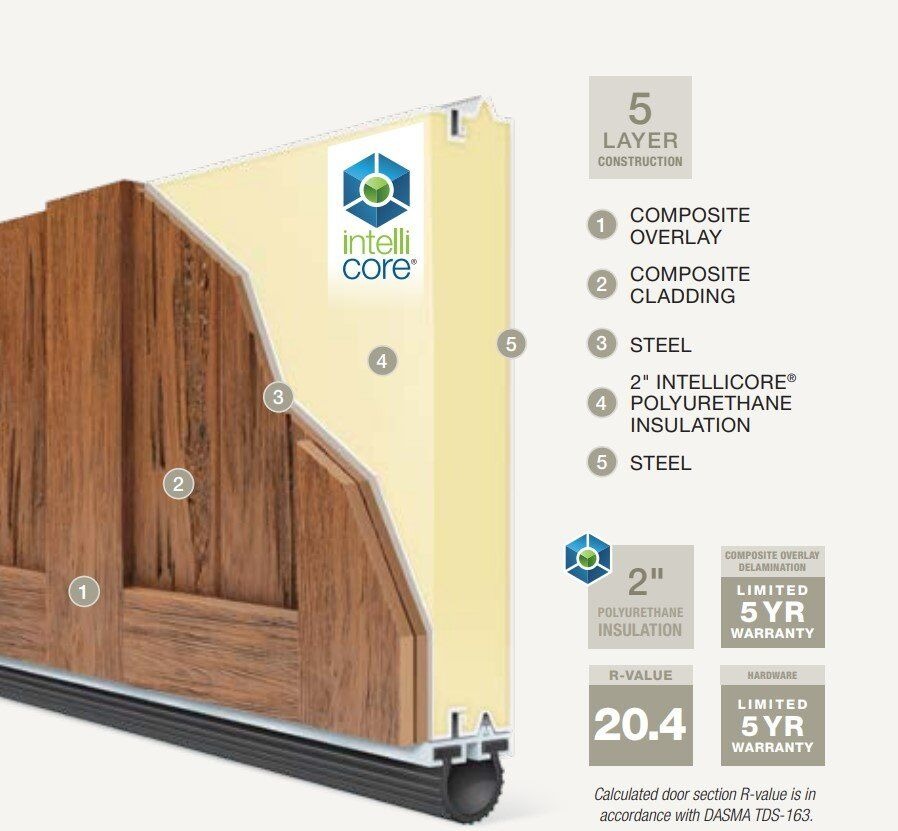

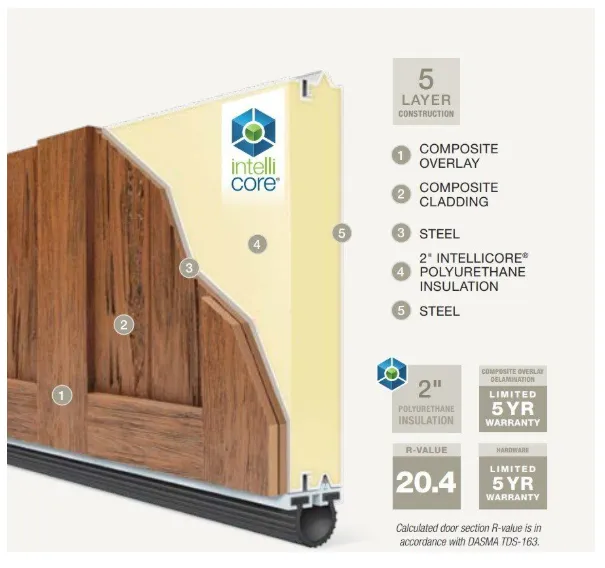

5-layer construction: steel + insulation + steel + composite cladding + composite overlay.
Faux wood-look composite cladding and overlay materials are molded from actual wood pieces to reproduce the natural texture and intricate grain patterns of the species they emulate
Colors include: Walnut, Dark, Medium, Slate, Black, White and Primed. (Additional Options)
2″ Intellicore® polyurethane insulation with a thermal break. R-Value of 20.4.
WINDCODE® door reinforcement product available for high wind load applications. (More Details)

5-layer, faux-wood doors with Intellicore® polyurethane insulation. 20.4 R-value.
Multiple door designs and window options. Many custom designs also available. See your Clopay Dealer for more information.
Insulated glass options include clear, frosted, seeded, rain and obscure. See page 20 for specialty glass options.
Attractive beveled edge, clip-in window grilles are removable for easy cleaning.
Replaceable vinyl bottom weatherseal in a rust-resistant aluminum retainer helps seal out the elements.
10-ball nylon rollers for quiet operation.
Heavy-duty 14 gauge steel hinges for long-lasting performance.
Clopay’s Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
Comes complete with spade lift handles and step plates. See page 21 for details.
